PoE Switch Quick Start Guide

Applied to :POE SWITCH

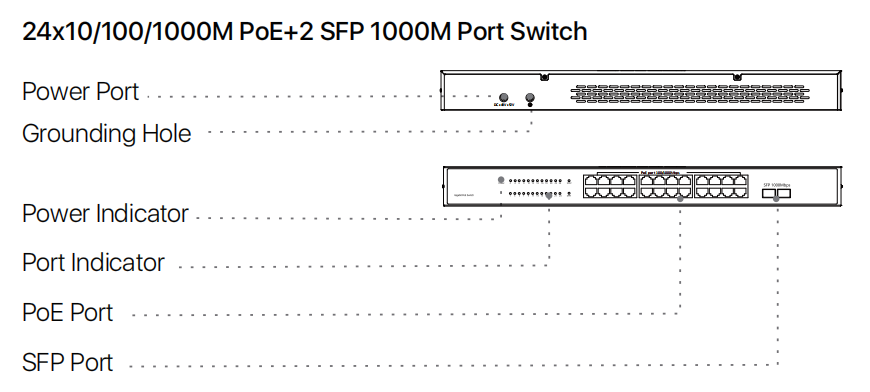

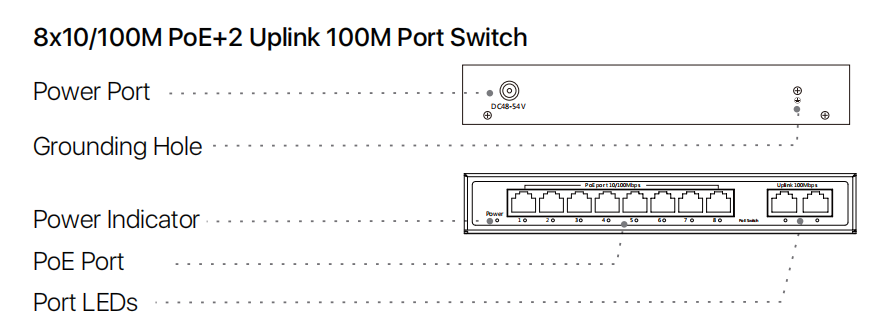

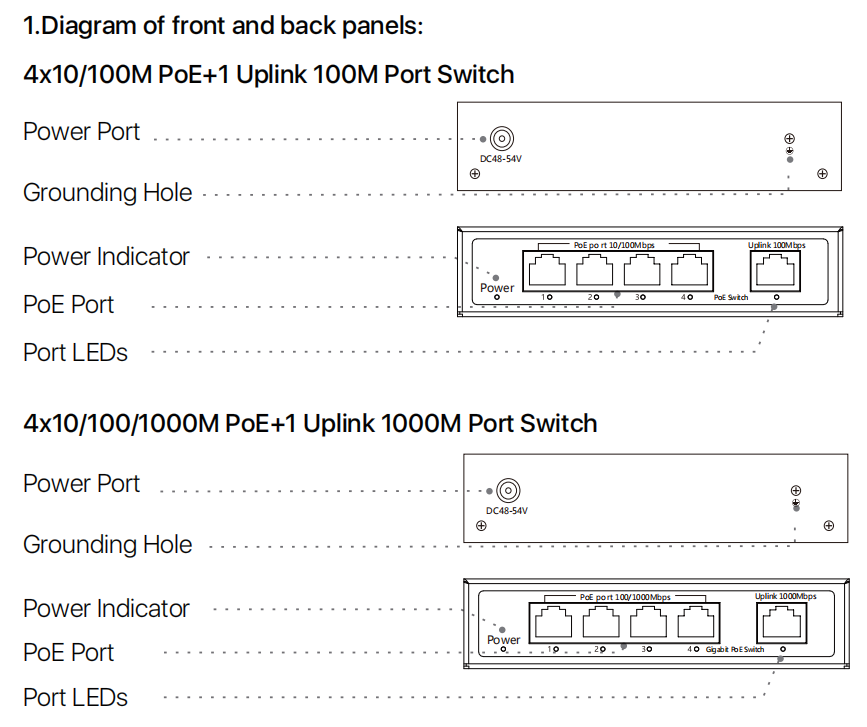

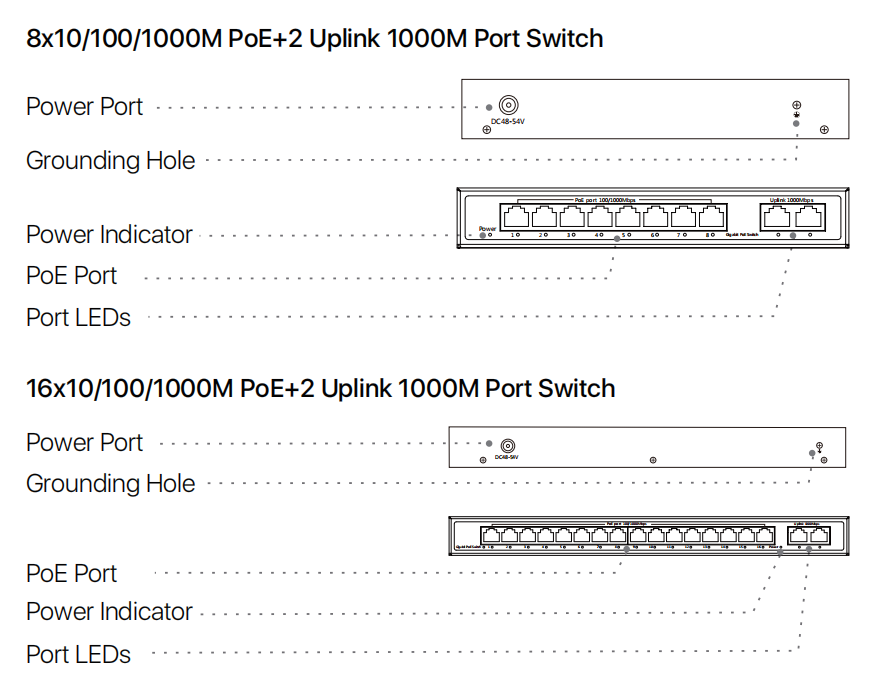

Front Panel:

Port LEDs:Off:No devices connected

Flashing:Transmitting/receiving data

Power Indicator:On:Power on

                          Off:Power off
Back Panel:

Power Port:Please connect the PoE Switch to outlet via the included power adapter or power cord for power on.

Grounding Hole:Connect the ground wire to prevent damage to the device from lightning strikes.

NOTE:The grounding hole is on the right side of the back panel of the PoE switch.Please be sure to connect the ground wire if possible to prevent lightning strikes.

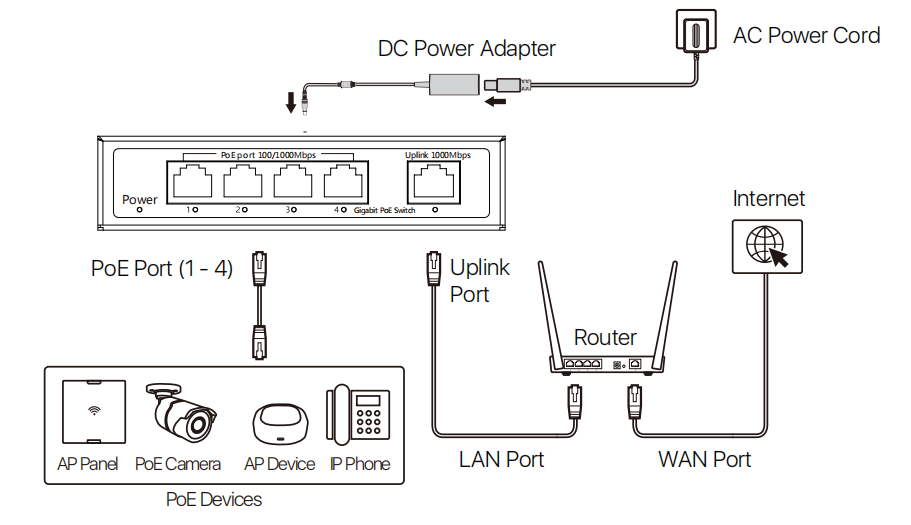

Connection Diagram



Connection methods:

PoE and AP devices can be connected to the PoE ports;

PoE switch,router and PC can be connected to the Uplink Port,

or PoE ports.The uplink port of the 26-port Gigabit switch is an SFP port that needs to be used with an

 SFP module.



Notes for connection

1. PoE Port can connect with non-PoE devices for data transmission only.

2. • 5 Port Gigabit PoE Switch: Ports 1-4 are PoE ports, with up to 30W PoE power for each port.

• 5 Port PoE Switch: Ports 1-4 are PoE ports, with up to 30W PoE power for each port.

• 10 Port Gigabit PoE Switch: Ports 1-8 are PoE ports, with up to 30W PoE power for each port.

• 10 Port PoE Switch: Ports 1-8 are PoE ports, with up to 30W PoE power for each port.

• 18 Port Gigabit PoE Switch: Ports 1-16 are PoE ports, with up to 30W PoE power for each port.

• 26 Port Gigabit PoE Switch: Ports 1-24 are PoE ports, with up to 30W PoE power for each port.

3. PoE Switch supports AUTO MDI/MDIX, plug and play. You can determine the connection status of the device by the port indicator.

4. • 5 Port Gigabit PoE Switch provide 4 10/100/1000Mbps RJ45 Port and one 10/100/1000Mbps Uplink Port.

• 5 Port PoE Switch provide 4 10/100Mbps RJ45 Port and one 10/100Mbps Uplink Port.

• 10 Port Gigabit PoE Switch provide 8 10/100/1000Mbps RJ45 Port and 2 10/100/1000Mbps Uplink Port.

• 10 Port PoE Switch provide 8 10/100Mbps RJ45 Port and 2 10/100Mbps Uplink Port.

• 18 Port Gigabit PoE Switch provide 16 10/100/1000Mbps RJ45 Port and 2 10/100/1000Mbps Uplink Port.

• 26 Port Gigabit PoE Switch provide 24 10/100/1000Mbps RJ45 Port and 2 1000Mbps SFP Port.



More question feel free to let us know.
